RJ45 Connector with HDMI Connectivity

Allows maximum throughput with a wide range of custom versions.

Moxi E Rj45 Hdmi Pr1
New Yorker Electronics
Nye
New Yorker Electronics Co.

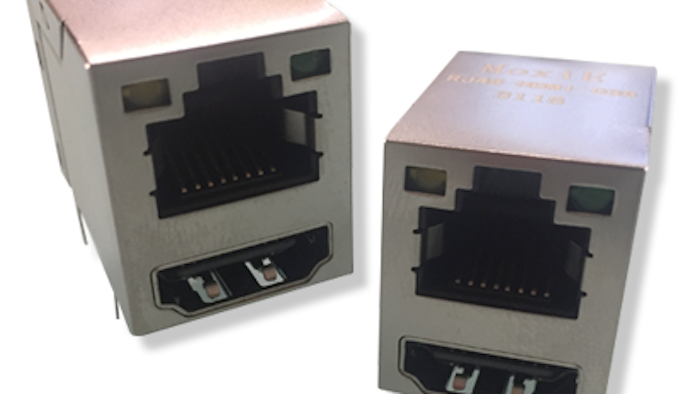

New Yorker Electronics has released the new Moxie Inductor Corporation RJ45 Connector with HDMI connectivity.

The MOX-RJ45-HDMI-038 series streamlines the audio/video interface by eliminating the need for two separate ports. The connectors are ideal for display controllers, computer monitors, video projectors, digital televisions and digital audio devices.

  • Standard operating temperature of -40°C to +80°C, with industrial versions available.

  • Voltage rating of 125VAC RMS and a current rating of 1.50AMP.

  • Dielectric strength of 1000VAC RMS 50Hz or 60Hz, 1 min.

  • Retention strength of 7.7KG.G Min between the jack and the plug.

  • Rated at a 30 Milliohms Max contact resistance and at 700 cycles per minute.

  • RoHS and REACH compliant.

For more information, visit http://www.newyorkerelectronics.com.
