WL-23326C Replacement Vacuum Interrupter

The replacement vacuum interrupter offers 1500 A RMS-rated current, 15.5 kV RMS maximum voltage.

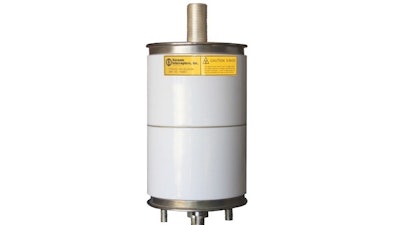

Vacuum Interrupters Sized

Vacuum Interrupters (Farmers Branch, TX) introduces the WL-23326C replacement vacuum interrupter.

This direct fit-and-function replacement unit for the Westinghouse WL-23326C vacuum interrupter meets original equipment ratings and is intended for use in the Westinghouse VACUTAP UVT load tap changer. The WL-23326C is built to provide excellent high-voltage insulation, high cumulative and breaking capacity, exclusive internal torsion control, and an exceptional vacuum seal thanks to a fine alumina ceramic.

The replacement vacuum interrupter offers 1500 A RMS-rated current, 15.5 kV RMS maximum voltage, 110 kV peak impulse withstand, and 20 kA RMS-rated short-circuit breaking current.

No modification is required for proper installation and operation in the existing electrical equipment. Vacuum Interrupters can also provide assembly components and mounting hardware to aid in installation and shorten downtime.

www.VacuumInterrupters.com
