RIGOL’s Most Powerful Oscilloscope Ever

The DS70000 series delivers new performance, speed and analysis capabilities, as well as a completely new interface.

Rigol Sized

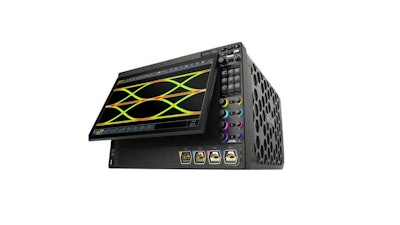

RIGOL Technologies (Beaverton, OR) announces its next generation of technological innovation with the release of StationMax Digital Oscilloscopes powered by the new UltraVision III platform. The new DS70000 Series is available in either 3 or 5 GHz bandwidths and combines the new UltraVision III oscilloscope technology and UltraReal spectrum analysis technology into RIGOL’s most powerful test and measurement instrument ever.

The innovative UltraVision III platform combines updated oscilloscope and spectrum analysis technology with its custom front-end Phoenix ASIC chipset to expand RIGOL solutions into new applications. In addition to 3 or 5 GHz bandwidths, StationMax provides 4 channels, 20 GSamples/sec sample rate (10 GSa/sec on all channels), 1 million waveforms/sec capture rate, 2 Gpts maximum storage depth, and high resolution measurements up to 16 bits.

StationMax leverages technology to provide Real-Time Oscilloscope and Spectrum Analyzer functionality. The DS70000 series delivers new performance, speed and analysis capabilities, as well as a completely new interface designed for the 15.6" multi-touch display. Powerful analysis capabilities include real-time spectrum analysis, multi-domain analysis, eye diagram and jitter analysis, high speed bus compliance and serial bus decoding.

www.rigolna.com
