Highly Accurate IMU Sensor

Provides guidance and navigation solutions in autonomous machines and vehicles.

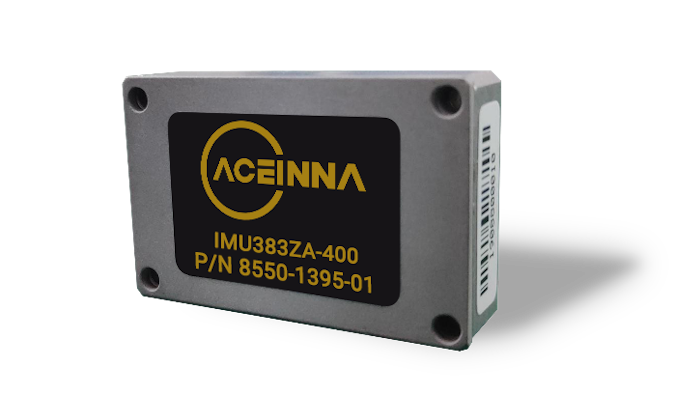

Imu383 Side Png

Aaceinna announces the availability of the new IMU383ZA, which integrates triple-redundant, 3-axis MEMS accelerometer and gyroscope sensors.

This miniature module is factory-calibrated over the -40C to +85C industrial temperature range to provide consistent performance through extreme operating environments for a wide variety of applications, including:

  • Automotive ADAS
  • Autonomous systems
  • Drones
  • Robotics
  • Agriculture
  • Construction
  • Other industrial machines

The IMU383ZA offers improved performance, in addition to a unique fault-tolerant sensor architecture for improved reliability. The IMU383ZA provides a standard SPI bus for cost-effective board-to-board communications. Other critical new features include advanced synchronization and a bootloader for field upgradeability.

The IMU383ZA triple-redundant sensor architecture consists of three independent, 3-Axis Accelerometer and 3-Axis Gyros for excellent accuracy and reliability.  By embedding a triple-redundant sensor array, the IMU383ZA uses Aceinna’s proprietary voting scheme to utilize only valid sensor data.  Any defective sensor output or errant dataset will be ignored or de-rated in importance.

More information can be found at https://www.aceinna.com/inertial-systems/IMU383ZA.
