Industrial Grade Optical Encoder

Improved feedback solution in applications typically using a standard size 20 package.

Screen Shot 2019 04 04 At 10 37 55 Am
Quantum Devices
Screen Shot 2019 04 04 At 10 30 07 Am
Quantum Devices

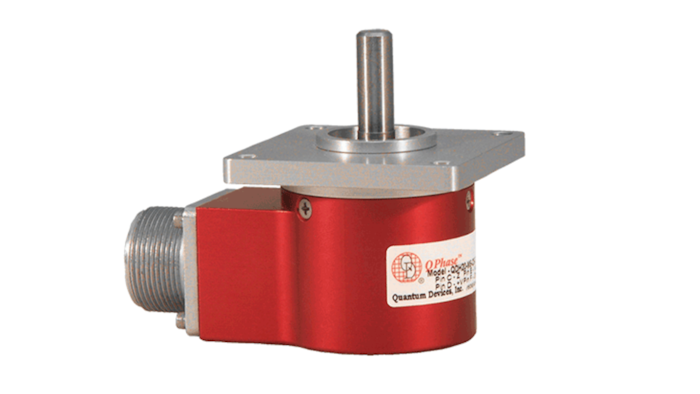

Quantum Devices’ Model QDH20 provides an improved feedback solution in applications typically using a standard size 20 package.

The QDH20 provides encoder feedback in standard industrial mounting configurations with superb mechanical and environmental protection.

Outputs consist of a quadrature A & B with reference pulse Z as a standard feature. The output can be configured with either the industrial standard 5 to 26 volt OL7272 line driver or open collector outputs.

Features include:

  • 500 kHz Fundamental Frequency Response

  • High Operating Temperature Option (100 C)

  • Resolutions up to 5000 lines per revolution direct read

  • Flange and Servo Mount Options

  • 0.375” shaft diameter

  • High Noise Immunity

For more information, visit https://www.quantumdev.com/
