Compact Automation Security Solution

The most responsive and compact safety solution of its kind.

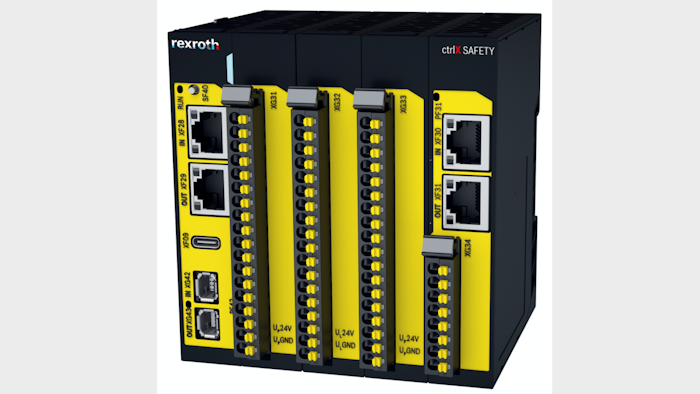

Screen Shot 2020 10 29 At 11 49 58 Am
Bosch Rexroth

Bosch Rexroth introduces ctrlX SAFETY, a novelty to the automation market: the most responsive and compact safety solution of its kind.

The scalable system can be used as required, from the drive-integrated SafeMotion solution in ctrlX DRIVE to the complete ctrlX SAFETY control. In addition to the flexible use, the advantages include a very high level of safety thanks to the fastest reaction times and efficient engineering through graphical programming of the safety PLC.

ctrlX SAFETY is based on two components that can be used independently or as an overall system: SafeMotion and SafeLogic. The hardware is extremely compact and, as a safety control, its graphical programming allows the required programs to be created quickly and easily without extensive training.

The intuitive engineering interface, a documentation-supported user guidance and ready-made dialogs for the acquisition of acceptance-relevant information enable significantly faster engineering than conventional solutions. For more demanding applications, the hardware can be extended by additional I/O modules via the safe fieldbus. It has flexible interfaces such as digital I/O, ctrlX SAFETYlink, Safety over EtherCAT (FSoE) and PROFIsafe (in preparation). The exchange of safe I/O signals between the safety control and the SafeMotion on the ctrlX DRIVE is performed via ctrlX SAFETYlink.

SafeMotion is based on the modular drive system ctrlX DRIVE and has a scalable software. It is available as an entry-level version, with extended functions or for the highest requirements.


ctrlX SAFETY allows for machine integration in the smallest installation space (thanks to shortened reaction times) and the integrated certified safety technology enables efficient machine acceptance. Once a safety solution has been planned, it can be integrated into different machine concepts without complex adaptation. As it supports the most common safe fieldbus protocols, ctrlX SAFETY can be integrated into almost any automation system, and modular safety strategies with safe cross communication can be realized.

To learn more, please visit www.boschrexroth-us.com
