Small Feeder for Masterbatch Applications

Flexible wall liner allows constant, accurate filling.

Pro Flex C100
Schenck Process

Schenck Process is now completing their offering to best meet market requirements: Meet the newest addition to the ProFlex C family β€” the ProFlex C100.

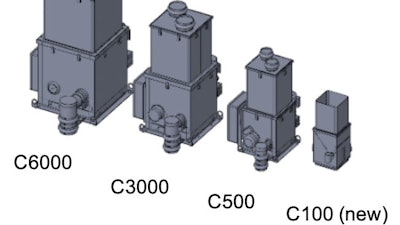

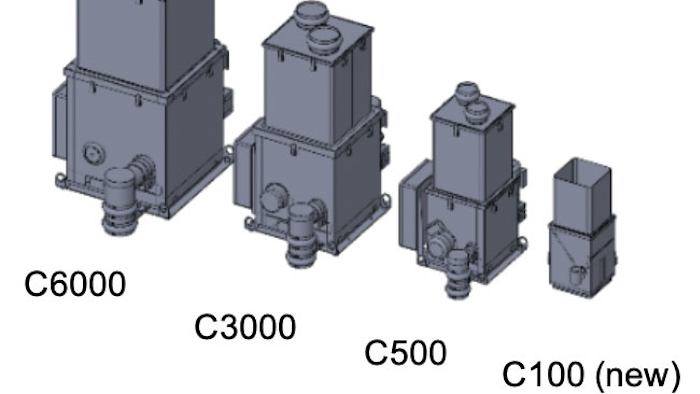

With ProFlex C 500, 3000 and 6000, Schenck Process already offers three feeder sizes with a total of five extension hoppers. The new ProFlex C100 is the smallest of the ProFlex C family and as such also fits on small extrudes. It comes in low weight, and up to five feeders can be grouped around an inlet of a lab or small size extruder.

A quick change hopper option in the ProFlex line for fast and clean change over without disassembling the feed screw. By keeping several hoppers including screw in stock, a wide range of additives and color pigments can be provided for in a highly flexible manner.

The asymmetric design prevents bridging and plugging of sticky material; it is equipped with an integrated gearbox for turndown ratios of up to 1:120.

A flexible wall liner massaged at eight points, which allows a constant and accurate filling of the screw feed element. It is NEMA drive ready for compounding and masterbatch, which is crucial for the US market.

The ProFlex C feeding system is used for the continuous feeding of bulk materials such as powder, granulates, pellets or fibers. Optimized design, flexible hopper walls and flexible installation options make the ProFlex C a tailored solution for the compound and masterbatch industries.

For more, visit https://www.schenckprocess.com.
