Electronic Proportional Pressure Controls

The Cordis makes everything from calibration to sensor variety acceptance to future development opportunities more accessible and less complicated.

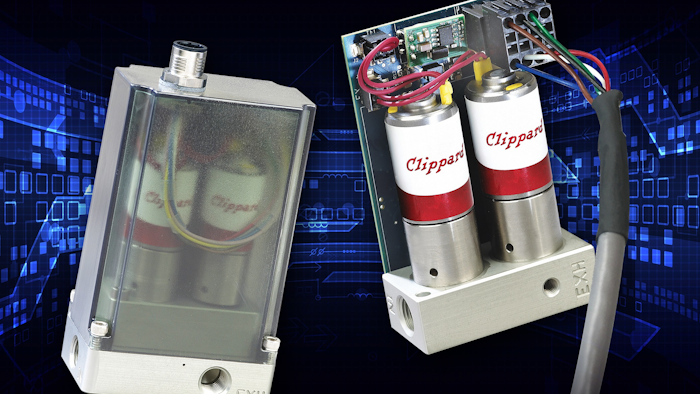

Clippard’s new micro-controllers.

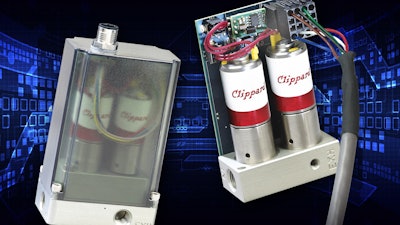

Clippard’s new micro-controllers.
Clippard

Clippard’s (Cincinnati, OH) new micro-controllers utilize the proven EVP and DVP lines of Clippard proportional valves allowing for steady, repeatable downstream pressure as demand or processes change. The result is a precise linear pressure control within a closed-loop system with ultra-high resolution (≤5 mV) and repeatability. With unparalleled performance and flexibility not possible with current analog proportional controllers, the Cordis makes everything from calibration to sensor variety acceptance to future development opportunities more accessible and less complicated. Specifications include the following:

  • Resolution ≤5 mV
  • Accuracy ±0.25% of full scale
  • Real time adjustable PID control
  • Integrated 0 to 10 VDC, 4-20 mA signal, or 3.3 VDC serial communication
  • 0 to 10 VDC feedback pressure monitor
  • Virtually silent
  • No integral bleed required
  • Static or dynamic applications with the same proportional control
  • Proportional fill and bleed control
  • Customizable pressure ranges
  • Made in the USA

www.clippard.com/link/cordis; 513-521-4261
