Subsea Valve Actuator

Field-proven safety electrifies the deep sea.

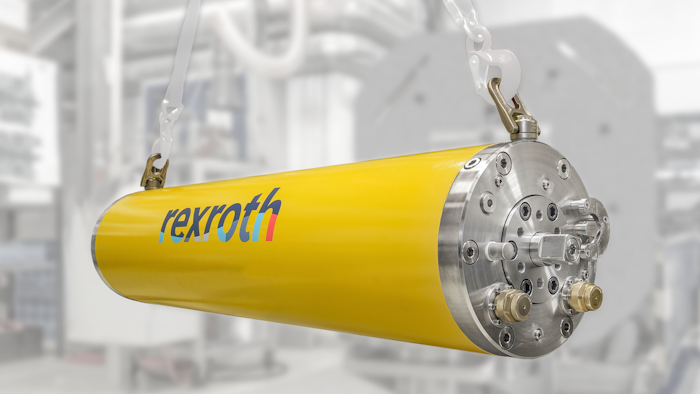

Screen Shot 2021 01 06 At 11 04 04 Am
Bosch Rexroth

The new concept for Subsea Valve Actuators from Bosch Rexroth has been certified by DNV GL for application in safety systems with up to Safety Integrity Level 3 requirements.

The SVA is a self-contained actuator for opening and closing process valves in the deep sea at depths down to 3000 meters and deeper. The system consists of an electrically controlled drive with a hydrostatic transmission, which saves up to 75% of the energy required compared to a conventional electro-mechanical axis.

The patent-protected SVA is designed to open and close process valves for oil and gas production or in CO2 storage systems in deep sea applications. A redundant design ensures that the actuator can close the process valve safely even in case of power failure and without external energy supply. In addition, the actuator can also be operated mechanically from the outside using an underwater robot via an independent override interface.

All relevant components of the powertrain are designed with redundancy. DNV GL, the world’s leading classification company for the maritime industry, has now certified the SVA for application in systems with safety requirements up to SIL 3 according to IEC 61508 and IEC 61511. The design also complies with the ISO 13628-x and API 17x standards, which are important in the offshore industry for the protection of people and the environment as well as subsea installations or vessels.

To learn more, please visit www.boschrexroth-us.com
