Linear DC Resistance Spot Welding Power Supplies

High speed, ultra-low ripple closed-loop output control for consistent welding process definition.

Dap Amada Mac Gregor 7514a
Amada Miyachi
28958878 1729028360469584 7813391646214457897 N
Amada Miyachi

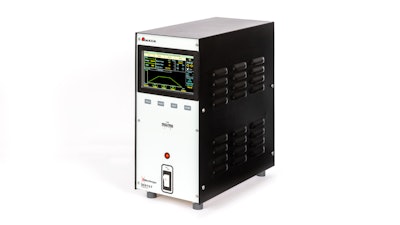

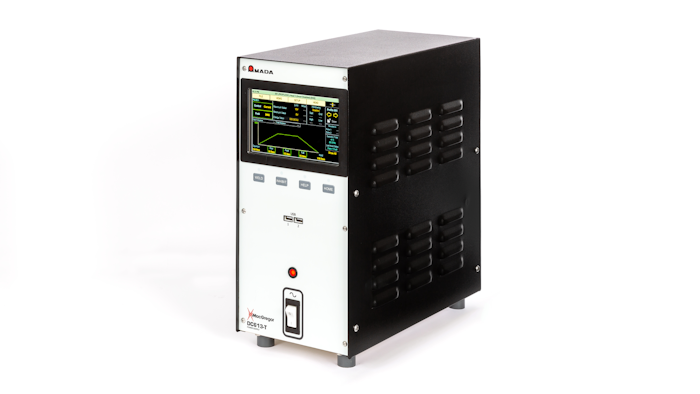

Amada Miyachi America announces the DC1013-T and DC613-T Series of linear DC resistance spot welding power supplies, manufactured by our sister company MacGregor.

Typically used in aerospace, medical, and electronic assembly applications, DC1013-T and DC613-T units are ideal for butt welding fuses, welding components to leadframes, gold ribbon bonding, and welding fine wire to pads. High-speed automation and communication ports offer users full remote control capability.

The DC1013-T and DC613-T Series incorporate statistical process control (SPC) data collection and reporting capability via Ethernet. The high performance 1000 ampere (A) precision linear DC spot welding power supplies combine touch panel integrated database process control and monitoring with a high accuracy, zero ripple linear transistor output stage that delivers ultra-fast 10 micron per second (µs) dynamic process response rates, with absolute closed loop 1 A incremental accuracy and repeatability.

Offering high speed, ultra-low ripple closed-loop output control, the DC1013-T and DC613-T Series provide consistent welding process definition and control. Operators can select constant current, voltage, and power modes with programmable multi-pulse combinations in 1 A steps up to 1000 A. Programmable part and weld checking is coupled with optional displacement and force limit checking. The DC1013-T offers three phase operational variants, while the DC613-T supports single phase operations.

For more information, visit http://www.amadamiyachi.com.
