Small Size Thru-Hole Resistors

Ideal for applications requiring high voltage handling capability.

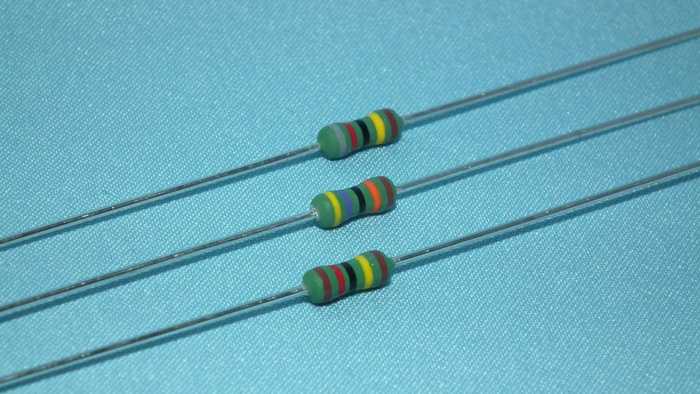

Stackpole Rnv14 Series Image
Stackpole Electronics
Sei

The RNV Series from Stackpole offers a robust, 1/4-watt-size resistor capable of handling up to 7KV under IEC 60065.14.1 standard testing.

The proprietary manufacturing and materials allow the RNV to withstand 1000 hours at 40 degrees C, 90% relative humidity with cycled power while experiencing very little resistance shift. The RNV14 has a working voltage rating of up to 1600VDC and an overload voltage rating of 3200VDC depending on resistance value.

The RNV is ideal for applications requiring high voltage handling capability, high reliability, and stability, such as:

  • Industrial electronics
  • Switching power supplies
  • Power inverters
  • AC adapters
  • Appliances
  • Electronic ballasts
  • Displays and monitors

The RNV is available in both 5% and 1% tolerances, and in standard ammo and tape and reel packaging.

For more information, visit www.seielect.com.
