Current Sense Chip Resistor

Series expanded to include a 0.3 milliohm value in the 2512 size.

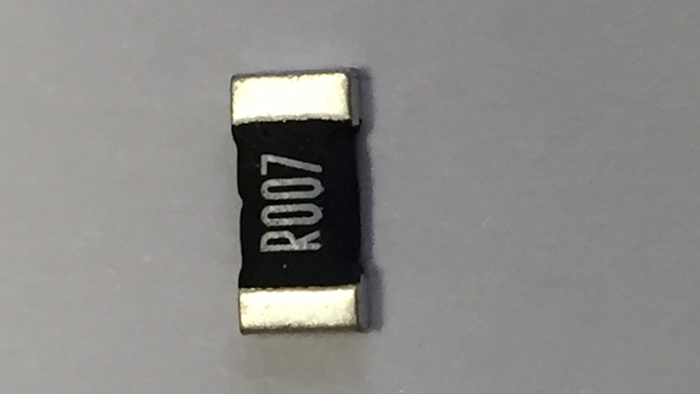

Stackpole Css2512 Pr Image
Stackpole Electronics
Sei

The popular CSSH Series ultra-high precision current sense chip resistor series from Stackpole has recently been expanded to include a 0.3 milliohm value in the 2512 size.

The CSSH2512 0.3 milliohm part is available in tolerances as low as 1% and TCR is 150 ppm, with a 3W power rating. This low resistance value coupled with the exceptional electrical stability and high temperature capability of up to 275 degree C operating range allow the use of the CSSH2512 for high power electronics for steady state currents of up to 77 amps.

Applications include:

  • Laptops
  • Portable test equipment
  • Bar code scanners
  • Medical monitoring and diagnostic equipment
  • Communications equipment
  • Energy monitoring
  • Metering equipment
  • Electric power tools
  • Sensors and sensing/detection equipment
  • DC to DC converters
  • Voltage regulators
  • Motor controls
  • Motion controls
  • Instrumentation

For more information, visit www.seielect.com.
