Current Compensated Frame Core Power Line Chokes

Ideal in lighting ballasts, switch mode power supplies and industrial electronics applications.

Moxie Power Line Chokes Pr
New Yorker Electronics
Nye
New Yorker Electronics Co.

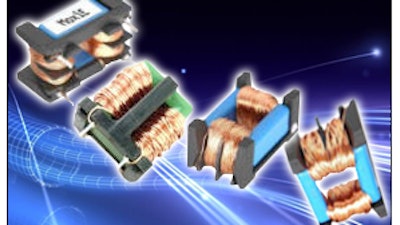

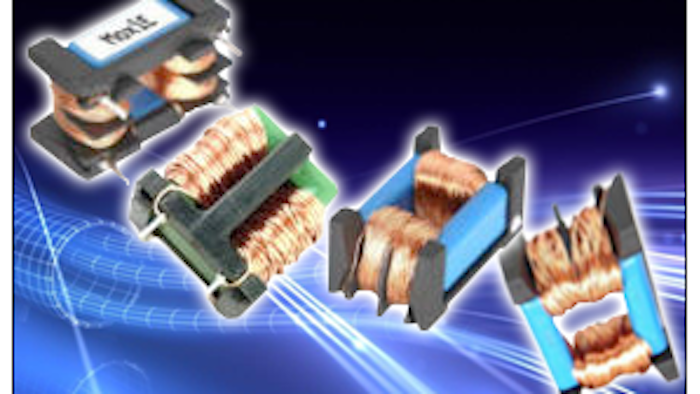

New Yorker Electronics announced the distribution of Moxie Inductor’s new Current Compensated Frame Core Power Line Chokes.

The new ROHS-compliant device is vertically mounted and supplies high inductance with a low resistance. Rated voltage for all four series is 250VAC maximum at 40°C. The operating temperature range is -25°C to +85°C with industrial temps available on request. These power line chokes are ideal in lighting ballasts, switch mode power supplies and industrial electronics applications.

The Moxie MOX-FCC-2413 Double Choke Series has a rated current of 0.29~2.93A and available inductance values of between 10mH and 100mH with a DCR from 285 to 2,920mΩ. The MOX-FCC-2323 Double Choke is rated between 1.55~4.05A. Its inductance values range between 2.20mH and 25mH and the DCR ranges from 65 to 295mΩ.

Features include:

  • Current-compensated frame core double choke
  • High inductance with low resistance
  • RoHS compliant
  • Current rating up to 4.05A
  • Rated voltage: 250VAC maximum @ 40°C
  • Operating temperature range: -25°C to +85°C
  • Bulk or tray packaging
  • Industrial temps available

For more, visit http://www.newyorkerelectronics.com/
