3D Electromagnetic Sensor

Designed for smartphones, key fobs and wearable devices.

3 Dc14 Emr Ulp
Premo
Screen Shot 2020 03 25 At 10 17 19 Am
Premo

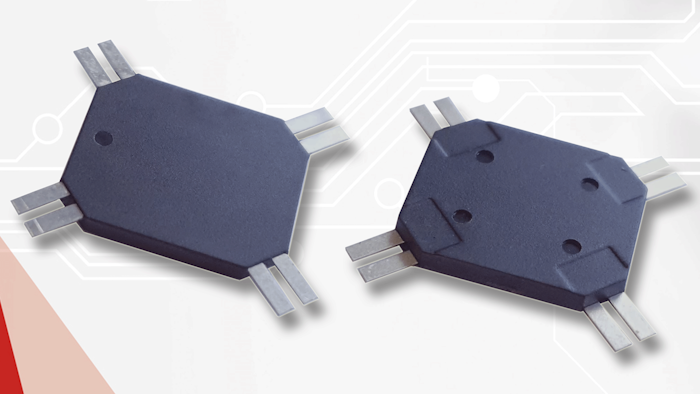

Premo announces the 3DC14EMR-ULP series, the lowest profile 3D antenna coil available.

This is a true ultra low-profile sensor with a 12mm x 14mm footprint and a 1.65mm maximum height that is able to be integrated into ultra-thin devices such as SmartCard-type key fobs, traditional automotive key fobs, special miniaturized key fobs, smartphones,and other devices such as hand-held controllers where EMMT is used for 6DoF applications.

With the new 3DC14EMR-ULP family, it is possible to “float” the coil in the PCB resulting in a true height of less than 1mm with a standard 0.6mm-1mm thick PCB.

This new 3DC ULP version also provides greatly increased sensitivity. Inductance values of each axis (x, y and z) are 4.77mH / 6.3mH / 10.5mH, allowing the coil to achieve sensitivities of 95 / 100 / 80 mV/A/m as a minimum per axis.

For more, visit www.grupopremo.com.
