Hall Effect Magnetic Torque Sensor

Boosts EPS drivability for safer, sustainable motoring.

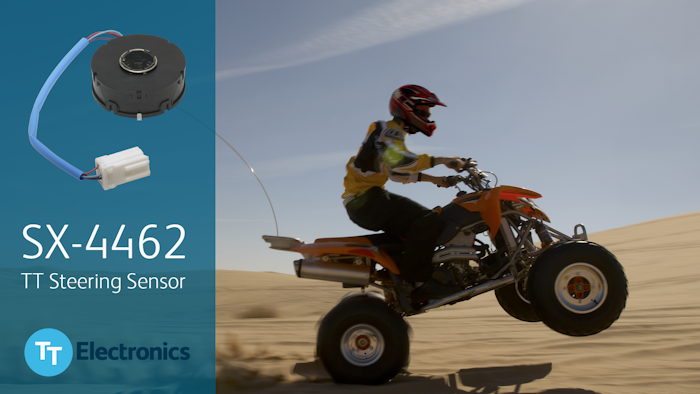

Tt109 Sx 4462 Torque Sensor
TT Electronics
Screen Shot 2019 01 29 At 10 16 11 Am
TT Electronics

TT Electronics has introduced the SX-4462 Hall effect magnetic non-contact torque sensor, a flexible and cost-effective sensor offering high accuracy and diagnostic capabilities for electronic power steering applications including off-road vehicles, three-wheelers, light commercial trucks and tractors.

The SX-4462 fourth-generation Magnetorque (MT4) is easy to integrate with customization options including full-scale range and sensitivity, wire length, product marking and connector type.

  • 4.5V-5.5V supply voltage range

  • Maximum current of just 20mA

  • Redundant outputs allow full diagnostics

  • Output voltage clamps that enable open/short detection

For further information visit http://www.ttelectronics.com/sites/default/files/download-files/SX-4462(MT4)Datasheet.pdf.
