Stackpole's new CSSU resistors.
Stackpole
Stackpole (RALEIGH, NC) announced the release of its CSSU Series resistors, featuring an industry-leading 5W power rating in a compact 2512 chip size.

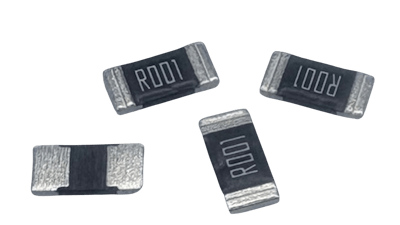

The Stackpole CSSU2512 resistor is designed to deliver high power density in compact form factors, addressing the thermal and mechanical challenges in modern power supply and control system designs.
Features & Benefits:
- 5W power rating in standard 2512 footprint
- All-metal construction for enhanced power handling
- Reduced thermal resistance and stress on surrounding components
- Special thermally conductive materials for superior long-term stability
- Resistance values from 1 to 10 milliohm
- Tolerances as low as 1%
- TCR of 50 ppm
- AEC-compliant for long-term reliability
- Mechanically robust against board flex and temperature gradients
- Ideal for demanding power management and control applications
AEC-compliant and suitable for high-reliability applications that demand compact, high-performance resistors.
