Integrated Stepper Motor Controller and Driver

Compact, plug-and-play, integrated controllers incorporate high-resolution micro-stepping drivers for precise positioning.

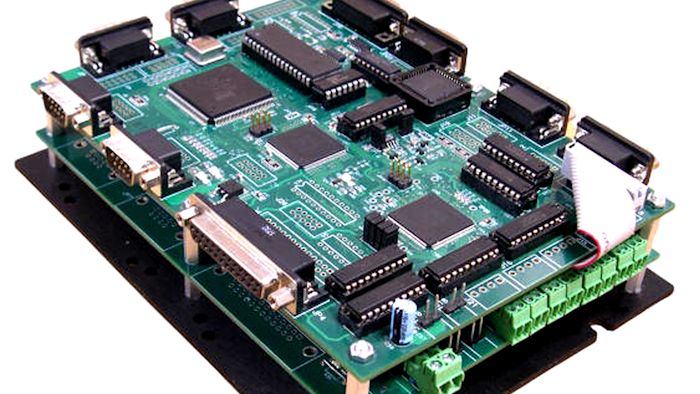

Oes Integrated Stepper Motors Controllers Drivers 4x5x300

Optimal Engineering Systems has introduced their new ICAD Series of integrated motion controllers and drivers for 2-phase stepper motors.

Available as 1, 2, 3, and 4 axes modules, they are ideal for NEMA 8 to NEMA 42 stepper motors. These compact, plug-and-play, integrated controllers incorporate high resolution micro-stepping drivers for precise positioning.

Other features include:

  • Home and limit switches per axis
  • Joystick interface
  • TTL/CMOS inputs and outputs
  • Quadrature encoder feedback
  • USB and optional Ethernet interfaces

The ICAD series is powered from a single power supply up to +48 VDC. The high voltage power supply allows for high speed operation.

Additional features of these ICAD Series modules include low power consumption, auto current reduction, high torque and high speed capabilities, serially or manually controllable, or host controlled. Modes of motion include point-to-point positioning, jogging, and coordinated motion.

For more, visit
