Linear Rotary Actuator

Slim, stackable linear rotary actuator with a direct drive brushless motor.

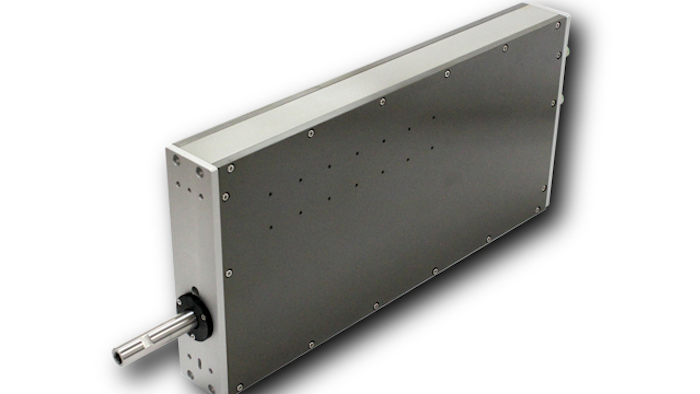

Smac Lbr40 Web

The LBR40 is a slim, stackable linear rotary actuator with a SMAC HT35 direct drive brushless motor.

Encoder resolutions are available from 5 micron to 1um for application flexibility to optimize on position control, and real-time feedback of data is required to assure quality.

IP67 protection is available as well as a built-in controller with popular communication protocols.

The LBR provides a long life cycle, high linear force and rotary torque, and is specifically designed for capping, thread inspection, and smart screw driving applications.

More information can be viewed at
