Motorized Linear Positioning Stages

Feature one-micron repeatability.

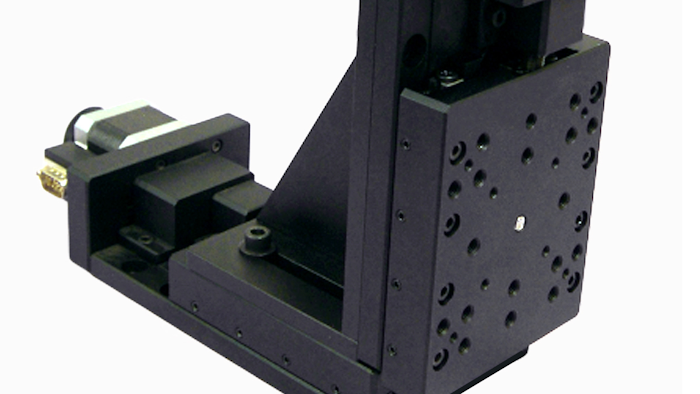

Oes Xz Axis Linear Stage 4x5x300
OES

OES has added a new series of 15 mm, 30 mm, 50 mm and 75 mm linear motion positioning stages to their broad selection of precision motion control components.

Each of these motorized XZ-Axis Linear Positioning Stages features 1 micron repeatability and 10 micron positional accuracy. Both the X-axis (horizontal axis) and the Z-axis (vertical axis) have the travel lengths of 15 mm, 30 mm, 50 mm, 75 mm and even longer to meet your application requirements.

The high-precision 1 mm per turn lead screws and crossed roller bearings are used in these black anodized stages. They are ideal for:

  • Sampling
  • Assembly
  • Sorting
  • Testing
  • Laser drilling and machining
  • Positioning in lab and manufacturing environments

The XZ-Axis linear stages are available with either stepper motors with knobs for manual adjustment which can be replaced with optical encoders for position verification. The stages are also available with servo motors and encoders for closed loop operation and higher operating speeds.

For additional information, visit http://www.oesincorp.com.
