Networked Absolute Rotary Encoders

New features include a Profinet interface, E2 technology and hub shaft option.

2020 01 28 Nr60 E2
Advanced Micro Controls
Amci Logo 300dpi
Advanced Micro Controls Inc.

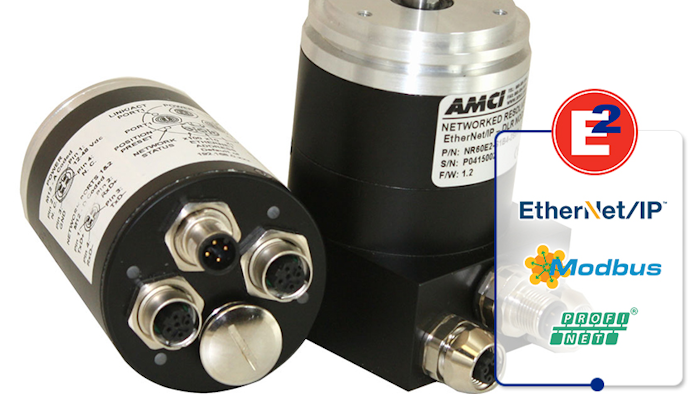

Advanced Micro Controls adds new features to their NR60E2 series of networked absolute rotary encoders.

The new features include a Profinet interface, E2 technology, hub shaft (blind shaft) option, and stainless steel units. These rotary sensors provide an overall measuring range of 16 bits (single-turn resolution) plus 14 bits (number of revolutions), for 30 bits total.

The AMCI NR60E2 networked encoders are 100% compatible with Allen-Bradley, Siemens and Schneider PLCs that support EtherNet/IP, Modbus TCP/IP, or Profinet. With both single-turn and multi-turn versions available, AMCI’s networked encoders are ready for any application.

Features include:

  • EtherNet/IP, Modbus TCP & Profinet
  • Integrated, dual-port switch
  • Single-turn resolution up to 16 bit
  • Multi-turn resolution up to 30 bit
  • IP67 Ingress Protection Rating
  • Solid shaft and hub shaft versions
  • Programs using PLC’s native software

NR60E2 Ethernet Encoders are offered in either a 63mm diameter package with hub/blind shaft mounting style, or a 58mm package with flange or servo mount options.

For more, visit http://www.amci.com.
