High-Force Voice Coil Motors

Long-life plain bearing permits side loads up to 3 pounds.

Moticont Sized 5e14f4a13b81a
Moticont
Moticont
Moticont

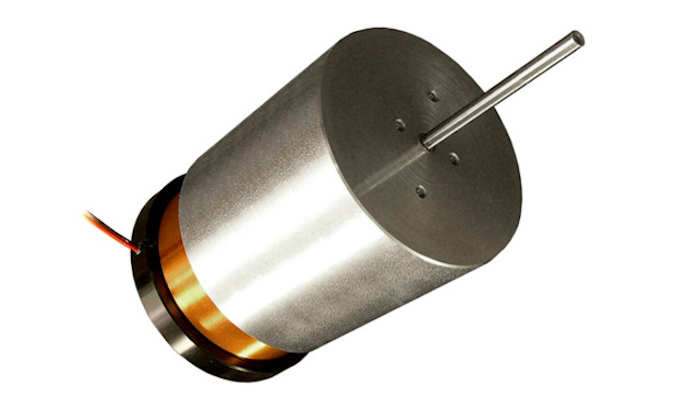

Moticont has added new high-force voice coil motors to its GVCM family of voice coil motors with an internal shaft and bearing.

The three linear voice coil motors in the GVCM-095-089 series feature the same housing measuring just 3.5 in. long by 3.750 in. diameter and the same threaded mounting holes for easy integration into new and existing applications.

Each motor is guided by a long-life plain bearing that permits side loads up to 3 lbs. The precision ground 0.236 inch diameter shaft has an internal thread.

The quiet, efficient, smooth, cog-free motion of these low inertia brushless GVCM-095-089 Series Linear Voice Coil Motors are ideal for:

  • Assembly
  • Clamping and work holding
  • Sorting equipment
  • Medical devices
  • Optical focusing
  • Antenna positioning
  • Shutters and doors
  • Testing
  • Slide actuators
  • Valve actuation
  • Wafer handling

For more, visit www.moticont.com.
