High-Precision Vertical Elevator Stage

Resolutions of 0.1 micron or 0.05 microns with 10/20 micro-steps per step motor drive.

Oes Azv9010 And Azv9020 Elevator Stages 4x5x300
Optimal Engineering Systems
Oes
Optimal Engineering Systems

Optimal Engineering Systems has released two new high-precision Z-Axis Elevator Stages.

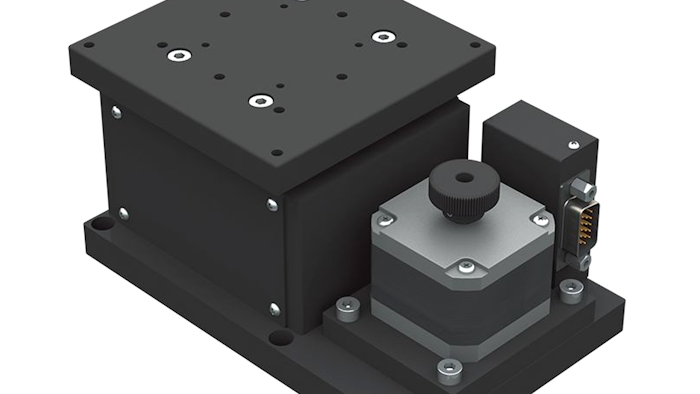

The AZV9010 and the AZV9020 Motorized Z-Axis Linear Positioning Stages have vertical travels of 10 mm and 20 mm respectively. The vertical motion of each Z-Axis Stage is driven by an 8 mm diameter ball screw with a 1 mm lead, and guided by cross roller bearings.

Very high resolutions of 0.1 micron or 0.05 microns with 10/20 micro-steps per step motor drive, and repeatability of +/- 0.5 microns makes these two Z-Axis Stages ideal for:

  • Microscopy
  • Inspection
  • Metrology
  • Positioning
  • Photonics
  • Sampling
  • Laser drilling and machining

Each stage has a 90 x 90 mm (3.543 in. x 3.543 in.) table with threaded holes for fixtures or tooling. Additionally each stage features a dynamic straightness of 5 microns and dynamic parallelism of 30 microns. The maximum z-axis travel speed is 5 mm/sec (0.196 in/sec) and load capacity is 5 kg. (11.0 lbs).
