Partial Extension Rails

Compact precision smooth sliding rails assembled with zero clearance.

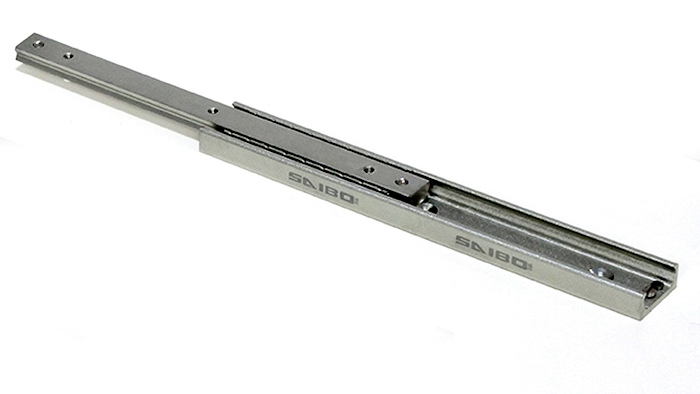

Lm76 Saibo Tpe Series Slides 4x5x300
LM76
Screen Shot 2019 11 01 At 11 42 40 Am
LM76

As the exclusive distributor of SAIBO linear motion systems in the U.S., LM76 is offering the SAIBO TPE28 and TPE43 series of partial extension rails.

These smooth sliding rails are assembled with a zero clearance. The TPE28 and TPE43 partial extension rail series are created using a “C” shaped external rail and an internal slider. Two rows of steel ball bearings (one on the top and bottom of the slider) travel in ball cages on hardened “V” shaped ways with four points of contact.

These rails are ideally suited for applications requiring smooth motion, such as:

  • Material handling
  • Rail systems in trains, aircraft, ships, trucks, and autonomous vehicles
  • Wafer handling
  • Delicate parts transfer
  • Assembly
  • Testing
  • Laser machining
  • Drilling

For more, visit http://www.lm76.com.
