20mm Linear Stepper Motor

Highly efficient, high-thrust tin-can linear actuator.

Screen Shot 2019 10 09 At 10 56 59 Am
Nippon Pulse (YouTube)
1478997 10152055840537140 1135023406 N
Electromate

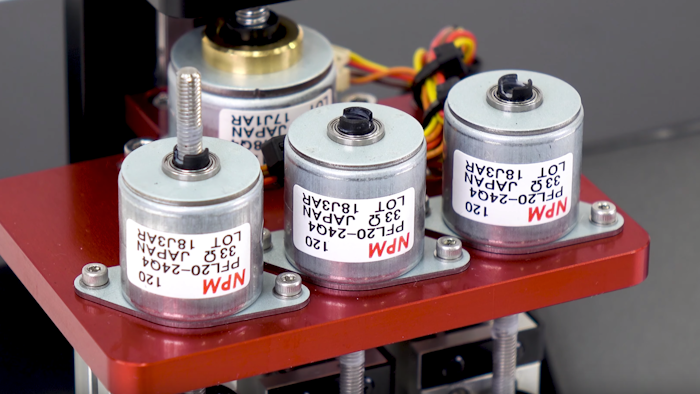

Nippon Pulse introduces its smallest linear stepper motor yet: the PFL20 Linearstep.

The PFL20 is a highly efficient, high thrust tin-can linear actuator with a 20mm diameter and a bipolar winding. PFL20 is RoHS-compliant, has a 30/60mm effective stroke, and can reach 6 N of force at 200 pps.

With 24 steps per revolution, the lead screw has a 1.2mm thread pitch; the PFL20 also reaches 5V rated voltage, resistance of 33 Ohms/phase and inductance of 12mH/phase.

The simple structure of Linearstep motors – just a threaded rotor hub and lead screw – helps to save space and reduce costs, due to fewer components needed compared to systems that convert rotary motion to linear. Linearstep motors are also easy to control, and can be ordered with unipolar or bipolar windings and a variety of usable voltages.

For further information, visit www.electromate.com.
