Low-Profile Direct Drive Motor

Provides direct control with the accuracy of a servo motor.

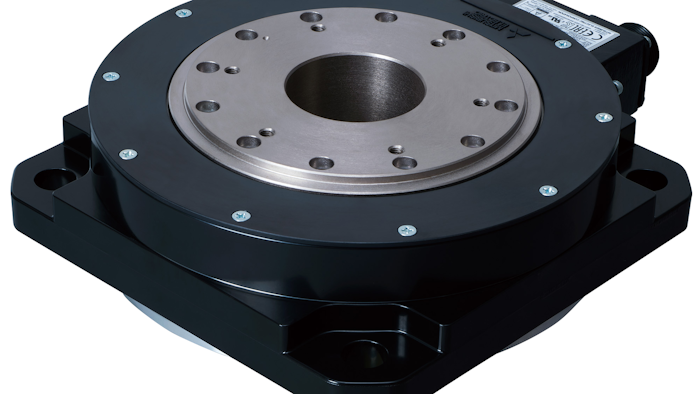

Mitsubishi Electric Tm Rg2 M004 E30 Low Profile Direct Drive Motor
Mitsubishi Electric
Screen Shot 2019 03 11 At 11 42 52 Am
Mitsubishi Electric Automation

Mitsubishi Electric announces the new Low-Profile Direct Drive Motors, TM-RG2M/TM-RU2M, for machine designers and end users looking for direct control of a load without traditional transmission components.

Built with speed and precision in mind, it provides a smaller footprint and allows for more compact, efficient and precise machines than those typically built using rotary servo motors.

Applications that are well suited for the new motor include:

  • Coating and vapor deposition systems

  • Index tables

  • Tool changers

  • Rotary material handling robots

  • Rotary axis on XYθ inspection positioning systems.

Unlike rotary servo motors that are coupled to a load with a mechanical transmission such as a gear, coupling or belt, the TM-RG2M/TM-RU2M is coupled directly to a load, resulting in greater positioning accuracy, reduced energy use and less maintenance.

Additional information is available at https://us.mitsubishielectric.com/fa/en/products/drive-products/ac-servos-melservo/melservo-j4/direct-drive-motor/j4ddm.
