Rotary Ball Spline

Applications include SCARA robots, the vertical shaft of assembly equipment, automatic tool changers and loaders.

3 Rotary Ball Splines
Nippon Bearing
Screen Shot 2019 01 14 At 10 51 17 Am
Nippon Bearing

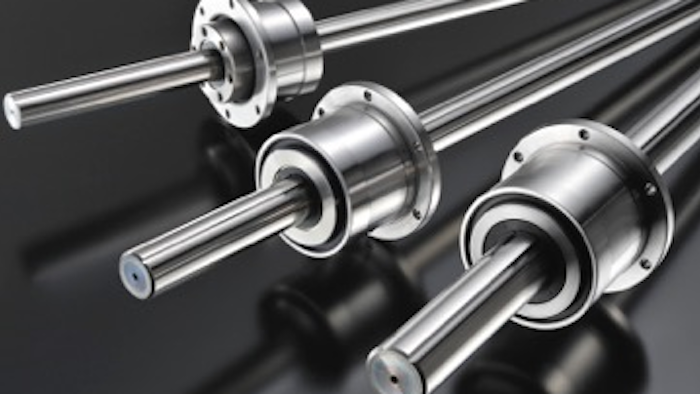

The NB Rotary Ball Spline can be used for both rotational motion and linear motion, and has a nut that rolls on the ball spline shaft — providing sub-millimeter accuracy every time.

Splines feature arch-shaped grooves on both the shaft and inner portion of the cylinder. These grooves approximate the diameter of the ball bearings, allowing them to carry a high load in a linear motion.

Popular applications include

  • SCARA robots
  • Vertical shaft of assembly equipment
  • Automatic tool changers
  • Loaders

For more, visit www.nbcorporation.com.
