Voice Coil Positioning Stage

Offers 1 micron resolution.

H2 W Vcs13 108 Lb 01 Mcf 4x5x300
H2W Technologies Inc.
H2 W
H2W Technologies Inc.

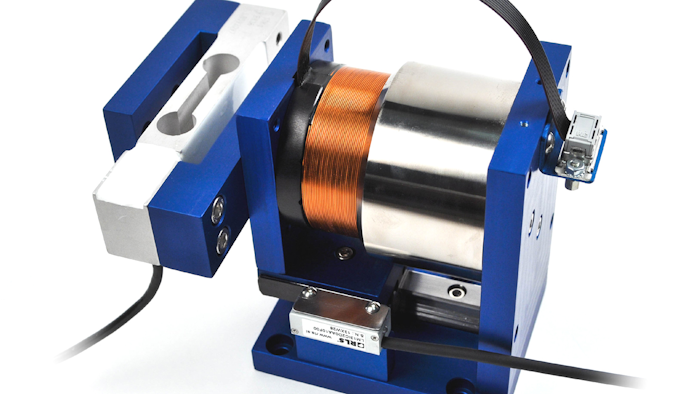

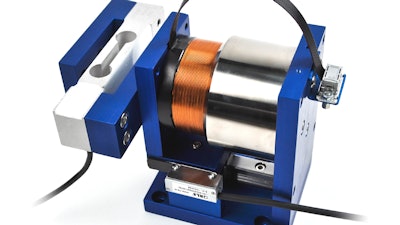

The VCS13-108-LB-01-MCF voice coil positioning stage uses H2W Technologies voice coil motor NCC13-30-108-1SH to generate a continuous/peak force of 10.8 lbs./32.4 lbs. with a total stroke length of 1.3 in.

The 1.0-micron resolution encoder allows for precise positioning. The load cell with signal conditioner allows for 1-100 N of push/pull force feedback. It comes supplied with a rigid recirculating ball linear bearing.

The motor coil is the moving part of the assembly to reduce the moving mass of the system.

Applications include:

  • Mirror tilt and focusing.

  • Z axis for pick and place equipment.

  • Medical diagnostic probes and laser beam steering.

  • Vision inspection.

  • Miniature position control.

  • Clean room.
