MEMS DC Calibration Reference Accelerometers

The rugged design of the Model 2290 Series incorporates a high-precision, non-ITAR controlled, tactical-grade MEMS inertial sense element.

Silicon Designs 2290 Reference Accel
Silicon Designs

Silicon Designs, Inc. (Kirkland, WA) has announced the global market launch of its Model 2290 Series, a family of high-precision, single axis MEMS DC calibration reference accelerometers. Offered in four unique full-scale acceleration ranges, of ±5 g, ±10 g, ±25 g, and ±50 g, the Series offers a precise, reliable and accurate means of determining the sensitivity and frequency response characteristics of unknown MEMS DC accelerometers during end-to-end calibrations and related performance verifications.

Within these applications, the Model 2290 serves as the "Reference Standard," either for performance specification comparisons, or as an actual substitute for the working accelerometer. Beyond such verifications, the Series also supports a variety of zero-to-medium frequency instrumentation applications ranging from 2000 Hz to DC, including both center of gravity acceleration measurements and equipment calibrations.

The rugged design of the Model 2290 Series incorporates a high-precision, non-ITAR controlled, tactical-grade MEMS inertial sense element (U.S. Export Classification ECCN 7A994) of similarly rugged design to that which may be also found within Silicon Designs' own industry best-selling Model 1527 Series.

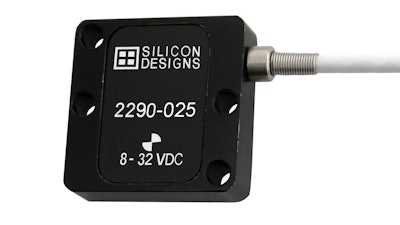

The MEMS DC accelerometer chip and other internal components of the Model 2290 are housed together within a 1” square, epoxy sealed, anodized aluminum case with 10-foot integral cable. The cable further terminates into 4-wire pigtails for seamless compatibility with most industry data acquisition systems. An initial calibration certificate is supplied with each Model 2290 accelerometer. Units are both REACH and RoHS compliant.The Model 2290 Series is relatively insensitive to temperature changes and gradients. Onboard voltage regulation and an internal voltage reference eliminate the need for precision power supplies.

www.silicondesigns.com
