Digital Process & Temperature Meter for Alarming, Control Applications

The design makes this panel meter suitable for control room or remote cabinet installations.

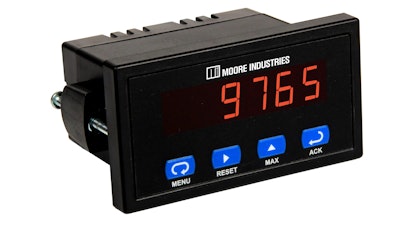

The 330R2 Digital Process and Temperature Meter from Moore Industries.
The 330R2 Digital Process and Temperature Meter from Moore Industries.
Moore Industries

The 330R2 Digital Process and Temperature Meter from Moore Industries is a versatile and field-programmable 1/8 DIN panel display suited for a variety of applications. With universal input and dual process relays, the 330R2 is suited for alarming and control applications in industrial settings. The compact design, NEMA 4X/IP65 front panel, and mounting make this panel meter a choice for control room or remote cabinet installations. With the included dual process relays and optional isolated 4-20mA output, the 330R2 is a multifunctional and diverse panel meter designed for the most challenging environments. Additional features include:

  • Adjustable display intensity, which is effective for outdoor installations.
  • Programmable inputs including 0-20mA, 4-20mA, ±20mA, 0-5V, 1-5V, 0-10V, ±10V, TC and RTD.
  • Auxiliary isolated 24 VDC at 200 mA transmitter power supply.
  • Optional isolated analog output for retransmission of input.
  • PC-based programming and monitoring software.
  • High and low alarms with multiple reset actions.
  • All models include 2 form C (SPDT) relays.
  • A duplex pump controller with alternation capability.

For more information, visit https://mimpage.miinet.com/330r2-process-temperature-meter.
