Miniature Optical Transceiver

Type B multimode transceiver designed for Industry 4.0 vision applications.

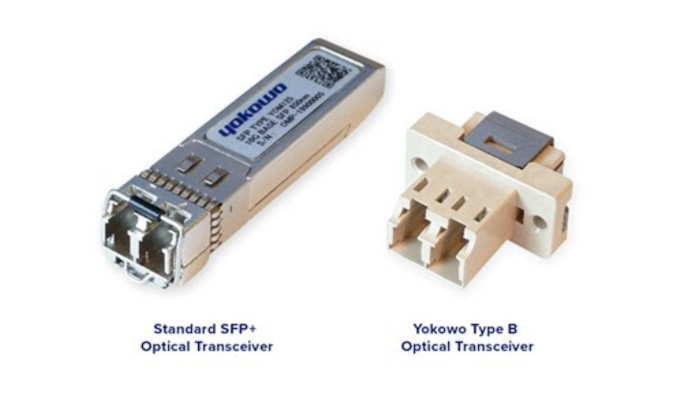

Screen Shot 2021 11 29 At 11 14 31 Am
Yokowo

Yokowo has launched a miniature multimode fiber optic transceiver that simplifies the design of Industry 4.0 vision applications.

Measuring one-third the size of traditional SFP+ transceiver modules, the Yokowo Type-B optical transceiver easily can be designed into space-constrained applications. Miniaturization and high-speed data transmission speeds ranging from 50Mbps to 12.5Gbps and a signal format of NRZ-PRBS231-1 make the Type-B optical transceiver well-suited for machine vision applications.

The Type-B multimode transceivers are compatible with LC connectors to provide easier integration and cost savings, as installers can use existing LC optical cables.

In addition, the Type-B optical transceiver offers low power consumption of 150 mW. Reducing power consumption in turn reduces heat generation within the machine vision housing. This simplifies cooling system requirements, as waste heat can degrade machine vision image quality if not properly dissipated away from temperature-sensitive electronics.

The modern transceiver itself offers a wide operating temperature range of -40℃ to 85℃.

For more information, visit https://www.optical.yokowoconnector.com.
