Adjustable Camera Mounts

These lightweight, low-profile camera mounts feature highly visible index marks.

Cei En Mount 2 1094
Components Express

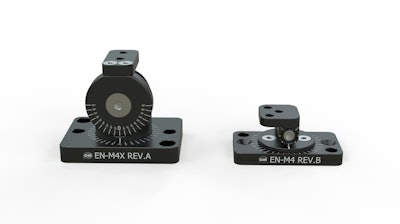

Components Express, Inc. (CEI) is pleased to announce its new Index MountTM adjustable camera mounts. Two different models are available—the Index and the Index Max. Both mounts feature a full 360 degrees of rotational freedom, with the Index and Index Max supporting 90- and 180-degree tilting, respectively.

These lightweight, low-profile camera mounts feature highly visible index marks around the swivel that streamline the setup process and enable repeatable camera positioning. Type 2 anodized aluminum bodies and strong tilt locks make these mounts suitable for rugged environments. In addition to their patent-pending design, the Index and Index Max include industry-standard mounting plates and are compatible with a broad range of automation components, not just machine vision cameras but also sensors, cables, lights and CEI’s IP67-rated enclosures.

Additional features include:

-Index (EN-M4)

-3.45 by 1.95-inch (88 by 50 millimeter) footprint

-Collet-style tilt lock

-Index Max (EN-M4X)

-3.75 by 2.75-inch (95 by 70 millimeter) footprint

-Taper-style tilt lock

Index Adjustable Camera Mounts are an effective solution for any machine vision application and are available at an attractive price point.
