Precision Machined Compression Limiters

Compression Limiters are designed to reinforce high stress joints in plastic assemblies where bolts are used to connect two components to each other.

Spirol Sized

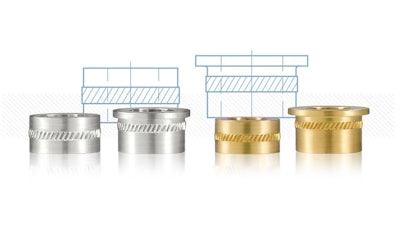

SPIROL (Danielson, CT) has introduced the new Series CL6000 lightweight, lead-free, Aluminum Precision Machined Compression Limiters. Compression Limiters are designed to reinforce high stress joints in plastic assemblies where bolts are used to connect two components to each other. They protect the plastic from excessive compression by absorbing the load when the bolt is tightened to the recommended tightening torque. This ensures the durability and reliability of the joint throughout the product’s lifespan.

The CL6000 is machined from 2024 grade aluminum which provides the best combination of strength, corrosion resistance, machineability and cost. The CL6000 aluminum Compression Limiters are 40% stronger and 1/3 the weight of the same Compression Limiter manufactured from brass.

For applications that require extra bearing surface for the mating component, the CL6100 Headed Compression Limiter has all of the same features of the CL6000, with the addition of a head.  In addition, for applications that require a galvanic alternative to aluminum, SPIROL is simultaneously launching the new CL8000 brass precision machined Compression Limiters, as well as the CL8100 headed brass version.

SPIROL offers several different standard types of Compression Limiters to meet specific application requirements and assembly methods.

www.spirol.com, 860-774-8571
