Static-Mobile Base for Suspension Arms

Offers a smart and robust floor-standing solution for light-to-medium loads.

Rolec2021 07 Hr
OKW
Screen Shot 2021 04 07 At 11 41 37 Am
OKW

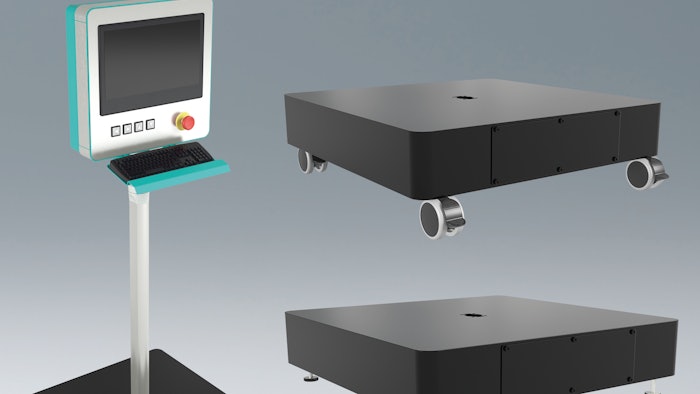

Industrial enclosures specialist ROLEC has added a tough new static/mobile base to its profiPLUS 50 range of suspension arms for HMI/panel enclosures and displays.

The new base unit offers a smart and robust floor-standing solution for light-to-medium loads. It is perfect for a wide range of applications including Smart Factory, process automation, robotics and machine controllers.

The base unit (part no. 142.030.150) has adjustable feet and a maximum static load capacity of 110 Ibs (50 kg). It has been designed to ensure maximum stability, safety and ease of operation for machine control systems in challenging industrial environments. An optional heavy-duty castor kit (part no. 501.142.000) can be fitted to the base unit. The castors have a brake feature.

Combine the base unit with a profiPLUS 50 support profile of suitable length (custom lengths can be provided) – along with a panel coupling or inclined rotatable console coupling – to mount a control enclosure or display unit.

The new static/mobile base is 25.6” x 25.6” x 5.1”-6.1” (with adjustable feet). The optional castors add 2.6”. The base weighs 57 lbs (26 kg) and has a central aperture (1.0” x 1.6”) for fitting the support profile. A removable cable gland plate is also provided on one side for cable entry. The base is manufactured from pressed steel with black RAL 9005 powder coating as standard. Custom colors are available on request.

HMI/panel and command enclosures recommended for profiPLUS 50 suspension arms and the new base include ROLEC’s premium multiPANEL, versatile profiPANEL and cost-effective commandCASE.

For more information, visit https://www.rolec-usa.com/en/suspension-arm-systems/profiplus-50/
