Ruggedized 10 Watt DC/DC Converters

They feature an ultra-wide 12:1 input voltage range.

Thn 10uir Header
Traco Power

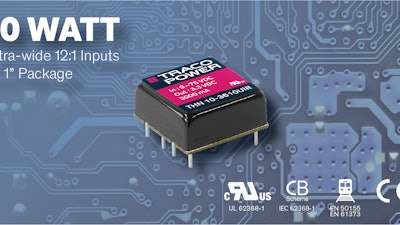

TRACO Power recently released the new THN 10UIR series of 10 Watt full-featured DC/DC Converters with ultra-wide 9-75 or 14-160 VDC input ranges in a compact 1 x 1” footprint.

The new series are DC/DC converters with a 12:1 input voltage range with dedicated holdup capacitor connection satisfies the hold-up requirements of EN 50155 without the requirement of input capacitors. A ruggedized package provides resistance against mechanical shock and vibration as well as fire behavior to satisfy both EN 61373 and EN 45545-2 standards. IEC/EN/UL 62368-1 safety approvals make these converters ideal for rolling stock and other demanding industrial applications.

Features include:

  • 12:1 input voltage ranges: 9–75 or 14–160 VDC
  • Railway EN 50155 & EN 61373 certified / IEC/EN/UL 62368-1 approved
  • Single and dual output models ranging 3.3~24 VDC
  • Full load –40Β°C up to +80Β°C without derating
  • Dedicated holdup capacitor connection
  • Reinforced 3,000 VDC I/O isolation
  • Remote on/off and trim function

The new THN 10UIR models are in stock now and available through TRACO Power’s global distribution network.

For more information, visit
