700W AC-DC Power Supply

Designed for medical applications.

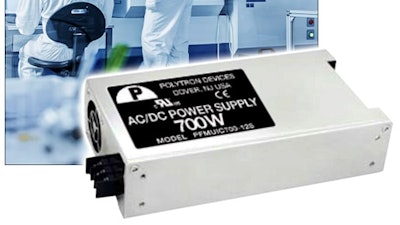

Polytron Devices Pfmu 700 Watt Power Supply1
Polytron Devices

New Yorker Electronics has announced its release of the new Polytron Devices PFMUIC700 Series of AC-DC power supplies designed for medical applications.

Polytron Devices, a leading designer and manufacturer of standard and custom DC-DC converters, switching power supplies and linear power modules, has introduced a 700W series of 12V, 15V, 24V, 28V and 48V power supplies.

The Polytron PFMUIC700 series features an ultra-compact compact size of 6.7 x 3.66 x 1.61in (170.2 x 93.0 x 41.0mm) in a fully enclosed plastic case. It is also designed with a remote on/off function for optimal safety. The Polytron Power Unit is credited with high efficiency to 92-percent and a 5V@1A standby. Built-in safeguards include short circuit, overload and over voltage protection; vibration and shock levels are IEC60068 compliant.

Capacitive load ranges are between 1,250µF and 5,000µF and its typical ripple/noise is rated between 160mV and 480mV. The PFMUIC700 AC-DC power supplies also deliver a low leakage current under 0.1 mA max, a 4000VAC (or 5656VDC) input to output and an operating temperature range from -30°C to +70°C. With an operating altitude of 5000M, this new 70-watt series also meets the following safety standards: UL, IEC, EN 62368, EN 60601 3.1rd Edition, EMC Conducted and Radiated EMI EN55032, EN55011 (conducted class B, Radiated Class A), EMS EN55024 and EN60601-1-2 4th edition.

Features include:

  • Enclosed medical switching power supply
  • Remote ON/OFF function
  • Standby 5V@1A
  • High efficiency up to 92%
  • With P.F.C. function >0.9
  • Current share function

For more, visit https://www.newyorkerelectronics.com/Polytron_Devices_700W_Medical_Power_Supply
