100V Low-Profile Schottky Rectifiers

Support designs requiring low board profiles.

Screen Shot 2021 03 30 At 11 46 20 Am
Central Semiconductor Corp.

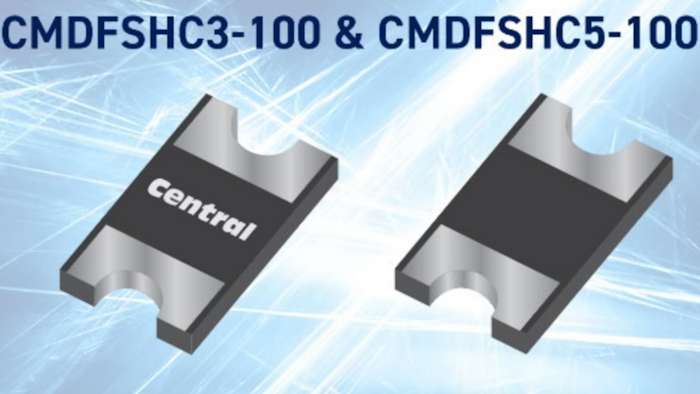

Central Semiconductor Corp. introduces its latest 100V low profile Schottky rectifiers: the 3A CMDFSHC3-100 and the 5A CMDFSHC5-100.

These energy efficient devices are packaged in the low profile SMC DFN surface mount case, and utilize highly reliable passivated silicon die. The space-saving SMC DFN package is 1.25mm in height, 53% lower than the comparable SMC, to support designs requiring low board profiles. Electrical specifications for these highly energy efficient devices include a low forward voltage (VF) as low as 0.78V at 5A.

These devices are ideal for reverse polarity protection, boost converters, DC-DC conversion, power factor correction and power management, and general rectification applications.

For application examples and additional information, please visit www.centralsemi.com/applications.
