Surface Mount Inductors

Meet the complex requirements of today’s high power-density applications.

Screen Shot 2020 01 23 At 11 25 51 Am
TT Electronics
Screen Shot 2019 01 29 At 10 16 11 Am
TT Electronics

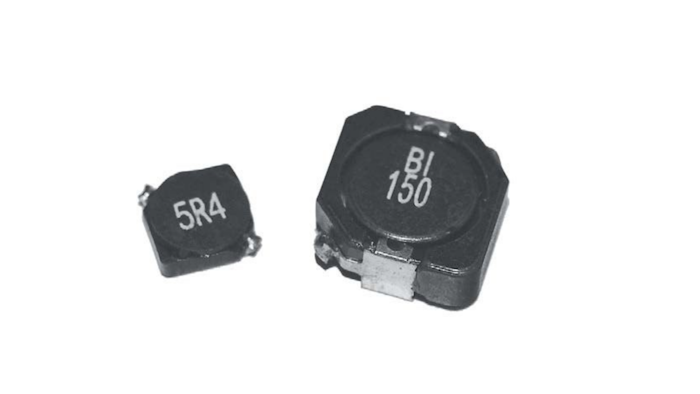

TT Electronics announced two new surface mount device power inductors: the HM66M series for use in high frequency power conversion systems and EMI filter applications, and the HM78M series for use in high density and high frequency DC/DC converter applications.

The HM66M series power inductors are designed for the complex industrial and telecommunications markets. The HM66M is a shielded, miniature low-profile SMD inductor that integrates a ferrite material core for significant permeability and temperature advantages. Characterized by low losses at high frequencies, these inductors are ideally suited for power supplies and frequency converters that operate with fast switching power semiconductors on a GaN basis.

Power inductance is optimized within a frequency range from 700 kHz to 4 MHz, and designed for systems that require switching frequencies up to 4MHz and operating temperatures at 125°C. The HM66M series is offered in three standard case sizes: 60, 70 and 84.

The HM78M series power inductors are shielded, ferrite-based SMD inductors designed for use in high frequency DC/DC converter configuration popular in industrial markets. With their high inductance and current values, these power inductors offer a switching frequency configuration range of 100 kHz to 3 MHz making them suitable as a buck converter or an EMI filter. TT Electronics’ HM78M series comes in two standard package sizes: 10 and 20.

For more information, visit www.ttelectronics.com.
