Fanless Embedded Computer

Two 260-pin SODIMM dual-channel DDR4 1866/2133MHz supports up to 32GB of memory.

Pl 50010 Editors
WIN Enterprises
Screen Shot 2019 12 17 At 11 43 15 Am
WIN Enterprises

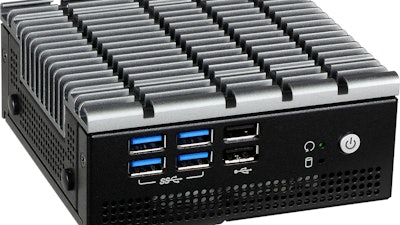

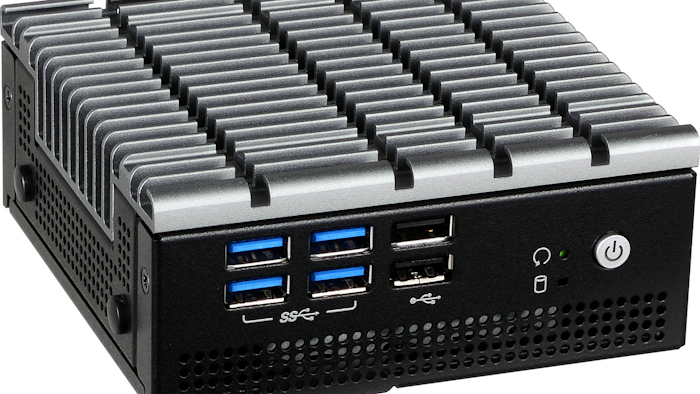

WIN Enterprises Inc. announces the PL-50010, a compact aluminum extrusion and steel constructed fanless embedded PC featuring a 7th/6th Gen Intel Core i7/i5/i3 processor.

It features two 260-pin SODIMM dual-channel DDR4 1866/2133MHz supporting up to 32GB of memory. One 2.5" SATA 3.0 HDD drive bay is provided by the device along with a one half-size Mini PCIe socket. The unit has a IP40 rating and measures just 115mm (W) x 48.7 mm (H) x 111 mm (D).

The PL-50010 has 2x USB 2.0 and 4x USB 3.0 COM ports to provide serial connections for gathering and storing factory-line information or fulfilling similar storage applications where lots of data are generated. USB 2.0, although slower that the newer 3.0 (by 10 x’s), can be used to augment a factory-based IoT architecture by capturing external video of manufacturing processes.

Data Display capabilities include 2x HDMI (dual HDMI displays) and audio (1x line-out; 1x mic-in). A 12v DC-in (DC jack) powers the unit. LAN connections include 2x GbE for corporate or edge networking to the Cloud. Certifications include CE, FCC Class A, RoHS, UL/cUL.

  • Supports 1x Mini PCIe
  • 1x M.2 slots
  • Rich I/O connectivity with 2x GbE LAN, 4x USB 3.0, 2x USB 2.0
  • 1x 2.5" SATA 3.0 drive bay
  • HDMI provides up to 4096x2304p @ 24Hz resolution
  • 115mm (W) x 48.7 mm (H) x 111 mm (D); 4.5” (W) x 1.9” (D) x 4.8” (D)
  • Supports DDR4 SODIMM up to 32GB
  • Wi-Fi capable

For more, visit http://win-ent.com.
