Foil on Ceramic Current Sense Resistors

Offer values down to 2.5 milliohm.

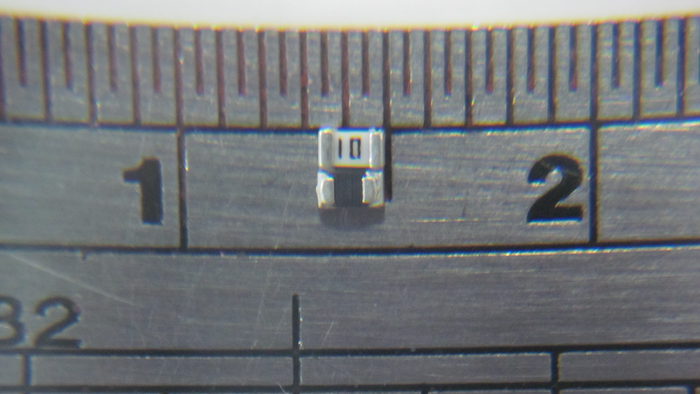

Stackpole Csrf0402 Image
Stackpole Electronics
Sei

Stackpole's CSRF Series utilizes foil on ceramic technology to achieve very low values in small chip sizes.

The 0.25W rated CSRF0402 - HP is available in resistance values from 20 milliohm down to 2.5 milliohm. TCR ranges from ±400 ppm to ±200 ppm are possible depending on resistance value with tolerances as low as 1%.

This combination of small size and low value make the CSRF0402 - HP a popular choice for a wide range of portable consumer electronics for power control and battery monitoring.

For more information, visit www.seielect.com.
