M12 Form Factor Transformer and Socket

Space-saving design also simplifies the circuit board layout.

Pr 573 2018 04 23 M12 20 Magnetics 2c9030ef4e
Harting Technology Group
Harting
Harting Technology Group

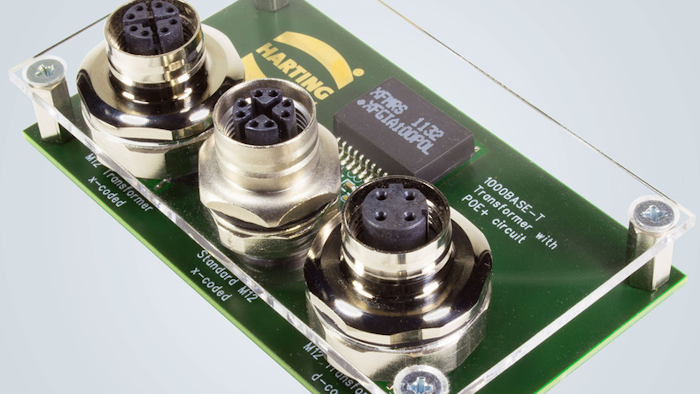

Harting announces the M12 Magnetics product line that offers the first transformer and socket in the M12 form factor.

Transformers in RJ45 sockets have been common for a long time, but the same technology was not available in M12 with IP65/67 ratings. Transformers and various other electrical components had to be accommodated next to the socket on the circuit board.

They are now integrated as part of a space-saving design that also simplifies the circuit board layout.

  • Allows lighter, more direct conductor tracks

  • Increased reliability

  • Mutually compatible unit

  • Greater process security

  • 10Gbit and max PoE+

For more, visit http://www.harting-usa.com.
