PIFA Antenna for Wi-Fi MIMO Applications

Patented structure allows use on flat and curved surfaces for greater design flexibility and superior gain and performance.

Laird Flex Mimo
Laird Technologies
Laird
Laird Technologies

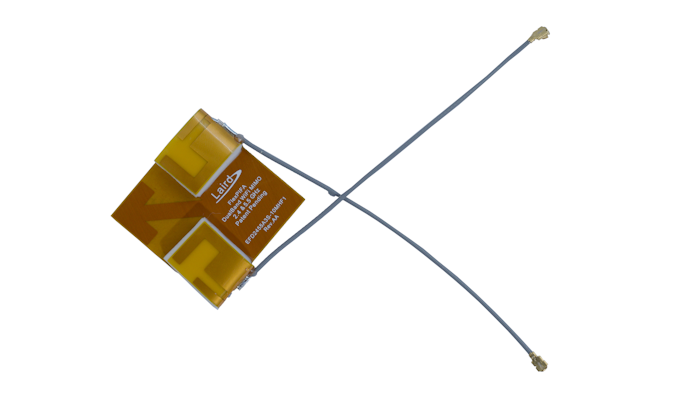

Laird (North Carolina) announced the industry’s first flexible PIFA antenna for Wi-Fi MIMO applications.

The FlexMIMO’s two integrated 2.4/5 GHz dual-band antenna elements are specifically designed for 802.11 MIMO applications, such as automated equipment, medical devices and Internet of Things use cases.

    •    Based on a Planar Inverted-F Antenna structure comprised of two mylar antenna elements with a foam core

    •    Layered, compact design about the size and thickness of a quarter, which reduces the overall solution footprint

    •    Operating temperature range of -40°C to +85°C to support 802.11n/ac/ax applications that use MIMO or Wi-Fi Diversity

    •    Low ECC performance, enabling best in class throughput and range performance, and can be used with Laird's 60 Series of Wi-Fi + BT modules

For more information, visit https://www.lairdtech.com/products/flexmimo-dual-band-mimo-antenna
