Self-Contained Displacement Sensor

The low-cost SC-2440 requires no calibration and is available for immediate delivery.

Kaman Sized
Screen Shot 2019 12 11 At 11 38 29 Am
Kaman Corp.

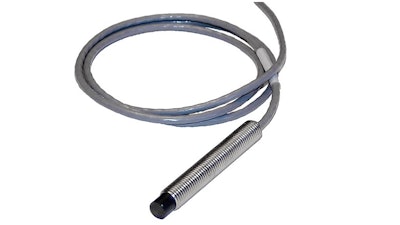

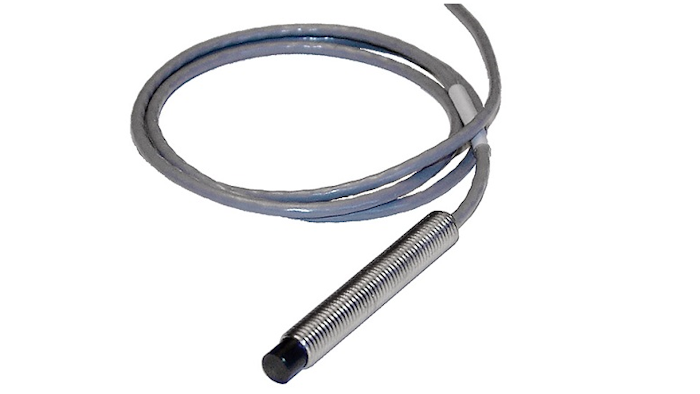

The Measuring Division of Kaman Precision Products, Inc. (Middletown, CT) introduces an off-the-shelf, self-contained analog output displacement sensor ideal for high-precision, and high-repeatability applications. The SC-2440 system is ideal for applications featuring high-precision automated assembly, OEM applications with on-board computing power and any application with high repeatability requirements. The low-cost SC-2440 requires no calibration and is available for immediate delivery.

The SC-2440 is unique in that the temperature of the sensor is continuously monitored, and the circuit provides a voltage output of 0.5 to 1.2 VDC from 0 to 70° C. This temperature-proportional voltage can be monitored by a microprocessor or PLC for active correction of the displacement output with changing temperature conditions.

www.kamansensors.com; 800-552-6267
