Power Rail Probes

Offer the lowest system noise of any solution available today.

Tek Tpr4000 01
Screen Shot 2019 03 07 At 9 44 06 Am

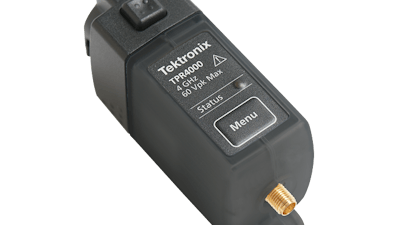

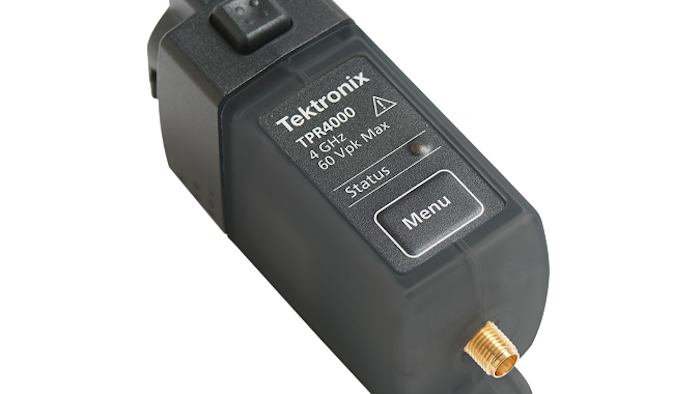

Tektronix is introducing the TPR1000 and TPR4000 power rail probes that combine with the 12-bit 5 or 6 Series MSO mixed signal oscilloscopes to offer the lowest system noise of any power-rail measurement solution available in the market.

The new probes are backed by a complete set of connectors for small, difficult-to-access test points helping to reduce connection frustration.

The ultra-low noise contribution of the probes helps you measure the noise on your DUT – well below a millivolt. The probes offer up to 60 V offset, 1 V dynamic range and up to 4 GHz of bandwidth.

They offer connection options to cover most scenarios:

  • Various solder-in tips offer reliable access to hard to reach, sensitive signals with optimal signal resolution at up to 4 GHz

  • For connecting to test points, SMA, MMCX, U.FL and square pins  are included

  • An optional handheld browser makes quick measurements up to 1 GHz
