Modular Hall Effect Sensors

Provides engineers with exceptional design flexibility.

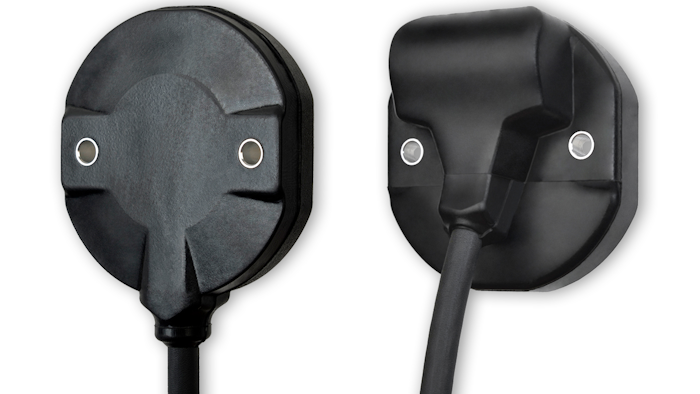

Sensata Acw4 Tcw4 Hall Effect Sensors
Sensata Technologies
Screen Shot 2019 06 19 At 11 04 40 Am
Sensata Technologies

Sensata Technologies announces the availability of the ACW4 Single Turn and TCW4 Multi Turn Absolute Hall Effect Sensors, which feature an over-molded, two-part modular construction that provides engineers with exceptional design flexibility.

The sensing electronics are encased in a thermoplastic polyamide shell while the separate activating magnet is external to the sensor assembly. This modular architecture results in a compact package of only 50mm in diameter by a maximum 24mm thick that allows designers to easily incorporate the ACW4 and TCW4 sensors into both new and existing systems.

An over-molded housing completely encapsulates the electronics and seals the cable entry from exposure to the elements, making this IP67-rated sensor an ideal solution for applications including:

  • Robotics
  • Industrial
  • Manufacturing
  • Material handling

To learn more, please visit http://www2.sensata.com/acw4.
