High-Performance Multi-Axis Drive

Unique control algorithms and processing technologies enhance the performance of high-precision motion stages.

Screen Shot 2021 01 21 At 10 50 10 Am
ACS

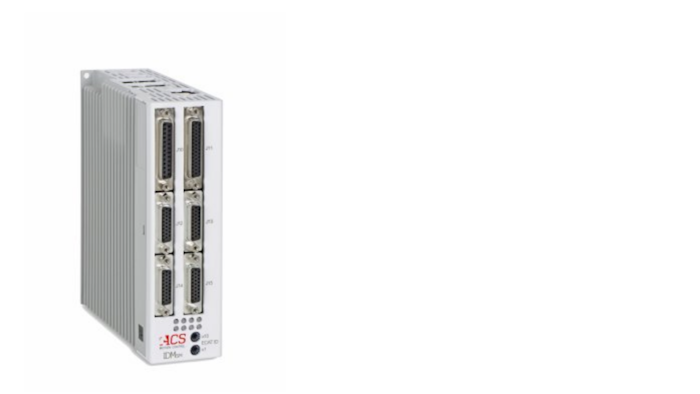

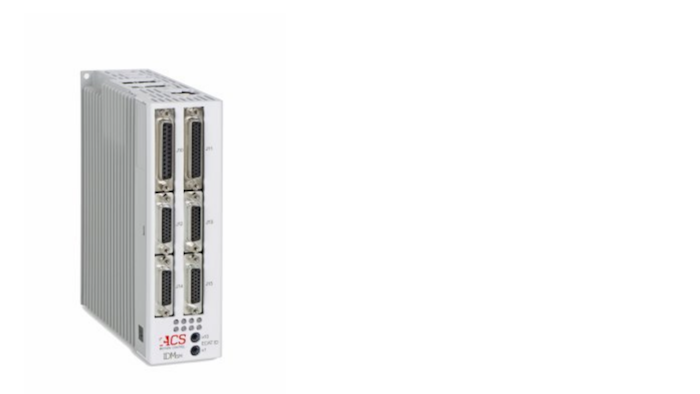

ACS launches the first in a new line of high-performance Intelligent Drive Module products.

The IDMsm is a 2- or 4-axis EtherCAT DS402 universal servo drive featuring unique control algorithms and processing technologies that enhance the performance of high-precision motion stages. Certified as EtherCAT Conformance Tested, the IDMsm provides up to 5A continuous and 10A peak per axis with 12-48 VDC drive supply.

Highlights include:

  • Powerful tuning and performance analysis software tools for stage performance optimization
  • Advanced servo control algorithms for gantries and other multi-axis stage configurations
  • Intuitive ACSPL+ real time programming with up to 4 simultaneous threads for maximum application flexibility
  • Standard DS402/CiA402 CoE EtherCAT interface provides connectivity to any EtherCAT master controller
  • Flexibility to interface with multiple motor types for best technology fit on each axis: brushless, brush, voice coil or stepper
  • Integral Safe Torque Off (STO), SS1 functional safety capabilities
  • Certified EtherCAT Conformance Tested

For more, visit acsmotioncontrol.com.
