Face Milling Platform

Exceeds highest surface requirements.

Screen Shot 2021 01 19 At 12 03 17 Pm
Kennametal
Screen Shot 2019 01 03 At 10 26 19 Am
Kennametal Inc.

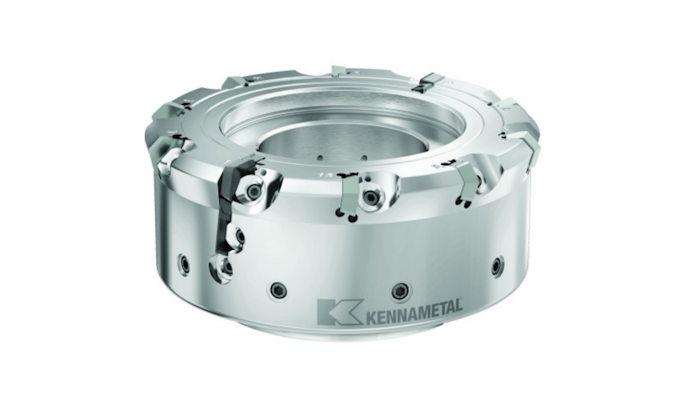

Kennametal has introduced a new face milling platform for cast iron applications, the KCFM 45.

With fixed and adjustable pocket seats, the new milling cutter provides the option for semi-finishing as well as fine-finishing applications, exceeding the highest surface quality requirements. With carbide, ceramic and PcBN inserts, this new tool is a flexible, cost-effective and user-friendly solution that is ideal for any type of CNC machining center.

Carbide inserts are ideal for machining at lower RPM, or in thin-walled workpieces and less stable conditions, while ceramic inserts (KY3500 grade) provide elevated surface speeds resulting in higher productivity. Both offer excellent performance. For fine finishing operations, PcBN inserts will deliver the best possible surface finish, tool life, and throughput.

The inserts are positioned at a positive axial angle, but with a slightly negative radial angle for better tool life. That creates significantly lower machining forces than competing cast iron face mills, helping to eliminate chatter and further improving surface finishes.

For more, visit www.kennametal.com.
