Matched Motor/Drive Combination

Enables the optimum solution for heavy-duty industrial motion control applications from a single source.

Screen Shot 2020 11 23 At 10 03 04 Am
Siemens

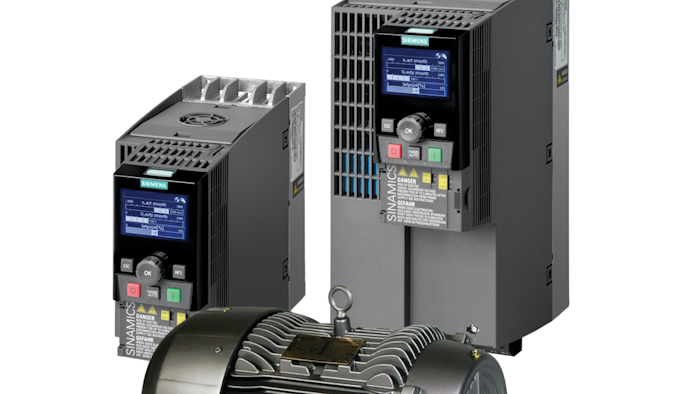

Siemens Industry Inc. announces the release of combination motor/drive packages, allowing an OEM or end-user the option to select the optimum solution for a variety of heavy-duty industrial motion control applications from a single source.

Choosing from a pre-determined list of motor/drive combinations, the customer simply makes the selection best suited to the application.

The motor and drive combinations are power-matched for 480V high-overload operation through a 20 hp range, with I 2 T protection from thermal damage provided as a standard in both the motor and the drive components. The Siemens Intelligent Operator Panel (IOP) is included with these packages, allowing easy step-by-step drive start-up.

Application macros are provided in the Sinamics G120C drive for easy installation and wiring; the terminals are pre-assigned at the factory and the parameters are automatically set. The SIMOTICS SD100 motors are rugged cast-iron with inverter duty ratings in a 4:1 speed range for constant torque and 20:1 speed range for variable torque. Simotics SD100 units are severe-duty TEFC motors that meet NEMA Premium efficiency.

Communications selections on these matched motor/drive combinations include RS485 with USS and Modbus protocols. A Profibus variant is also offered for a Totally Integrated Automation (TIA) solution.

For more information, visit www.usa.siemens.com/drives.
