Hygienic Integrated Electric Actuators

Provide modular clean-in-place solutions.

Unnamed
Tolomatic
Screen Shot 2020 02 12 At 11 03 45 Am
Tolomatic

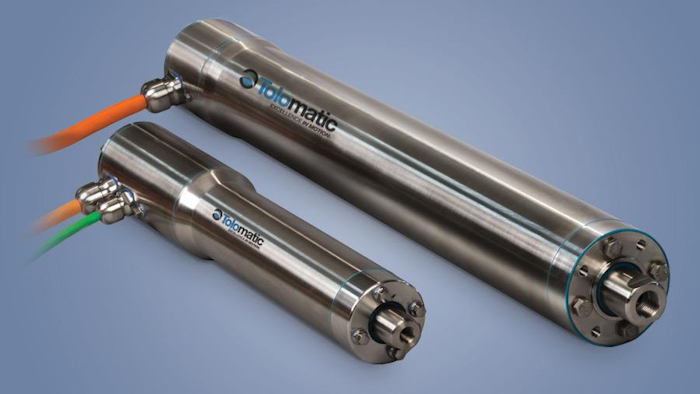

Tolomatic IMA-S integrated electric servo actuators are designed to hygienic standards for eliminating harborage points and preventing bacterial growth.

The 316 stainless-steel construction provides excellent corrosion resistance and withstands high pressure, high temperature and caustic wash-down. With its hygienic design and IP69k ingress protection rating, the IMA-S meets clean-in-place requirements, allowing machine designers to achieve open machine designs and eliminate shrouding required to house standard actuators.

The hollow rotor servo motor is integrated into the actuator housing. This creates a compact, hygienic motion module that facilitates conversion of pneumatic and hydraulic cylinder systems by increasing efficiency, motion control and eliminating product contamination risks.

The hygienic IMA-S series offers forces up to 11.1 kN (2500 lbf), stroke lengths up to 450 mm (18 inches) and options for planetary roller screws or ball screws. A proprietary lubrication feature helps extend service life.

Feedback options include multi-turn absolute encoders (Hiperface DSL, Hiperface Sin-Cos, EnDat 2.2), incremental encoder, and a resolver to integrate with most PLC or control system. Motor files for Rockwell Automation (Allen Bradley) Kinetix motion platform are also available for quick integration. Flexible mounting options include front face, front flange and rear clevis.

For more information, visit www.tolomatic.com.
