Brushless Motor with Integral Drive

Maximum torque, speed and positioning control.

All565 Endura Max 75i 300 Dpi
Allied Motion Technologies
Screen Shot 2018 11 08 At 11 44 19 Am
Allied Motion Technologies Inc.

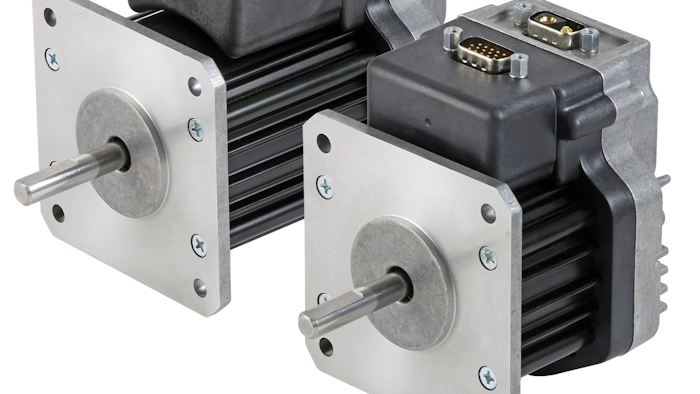

Allied Motion Technologies has introduced the EnduraMax 75i Series, a 75 mm diameter brushless DC motor with an all-digital integrated drive.

The compact, high power density EnduraMax 75i is capable of controlling torque, speed, and position in a wide range of commercial/industrial applications including: AGV vehicle traction or steering, medical patient-handling equipment, rotary/linear actuators, pumps, mobile HVAC blowers, and material handling systems.

Compared to brush DC motors, the cost-effective EnduraMax 75i features quieter operation and longer life without the need for brush maintenance, making it the ideal choice in equipment modernizations and new designs.

The EnduraMax 75i offers three standard stack lengths with continuous rated power up to 370W, continuous rated torque up to 1.3 Nm (190 oz-in), and rated speed of up to 5150 RPM. The 12, 24, or 48 VDC winding voltage choices make the EM75i ideal for battery-powered applications. Command inputs may be: ±10 Vdc, 4 - 20 mA, or via an optional CANopen or Modbus port. Customized winding designs and voltages, shaft, and mounting options are available to meet custom application requirements.

Options include:

  • Integration with Allied Motion gearboxes
  • Stainless steel shaft
  • 9 or 10 mm diameter shaft
  • Pre-made connectorized cables
  • Integral holding brake
  • Sealed ball bearings
  • IP67 protection level
  • Stainless steel shaft

For more information, visit www.alliedmotion.com.
