3.75" Stroke Linear Voice Coil Motor

Features high force-to-size ratio.

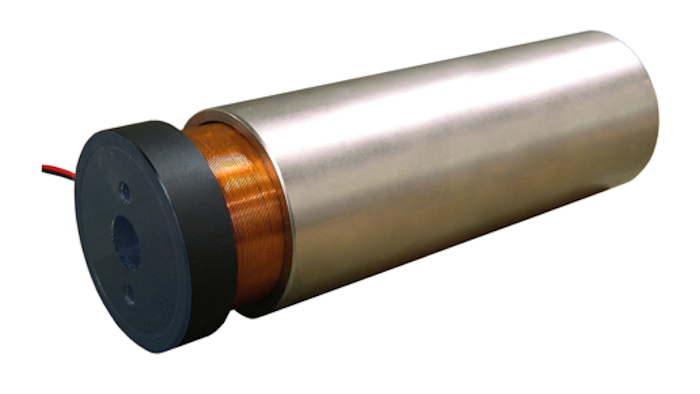

Moticont Linear Voice Coil Motor Lvcm 051 127 0 4x5x300
Moticont
Moticont
Moticont

The LVCM-051-127-01 Linear Voice Coil Motor with a stroke length of 3.75 in. is the newest addition to the Moticont’s extensive line of linear Voice Coil DC motors.

This 2.00 in. diameter linear motor has a high force-to-size ratio of 5 lbs. and a peak force of 15.8 lbs. at 10% duty cycle. The motor features two 10-32 UNC-2B threaded mounting holes in the housing and two 10-32 UNC-2B threaded mounting holes in the coil end for easy integration into new and existing applications.

This efficient, high force, high acceleration/deceleration, low inertia, clean, zero cogging, brushless voice coil motor is an ideal choice for:

  • Clamping and work holding
  • Sorting
  • Scanning laser beam steering and filtering
  • Laser machining and drilling
  • Testing
  • Sampling
  • Packaging
  • Wafer handling
  • Medical and pharmaceutical applications

For additional information, visit http://www.moticont.com.
